Bluebird 200 Watt 12 Volt Mono PERC Solar Panel

Bluebird 200 Watt 12 Volt Mono PERC Solar Panel

BBS12MF200

0
0

You Save Rs. 13,500
Rs. 9,000.00
/
Regular price Rs. 22,500.00 Sale price 60% OFF
(Inclusive of all taxes)

5% off on your first purchase - Use Coupon Code: BLUEBIRD5

25-years warranty

Free Shipping

10 Days Returnable

Express Delivery

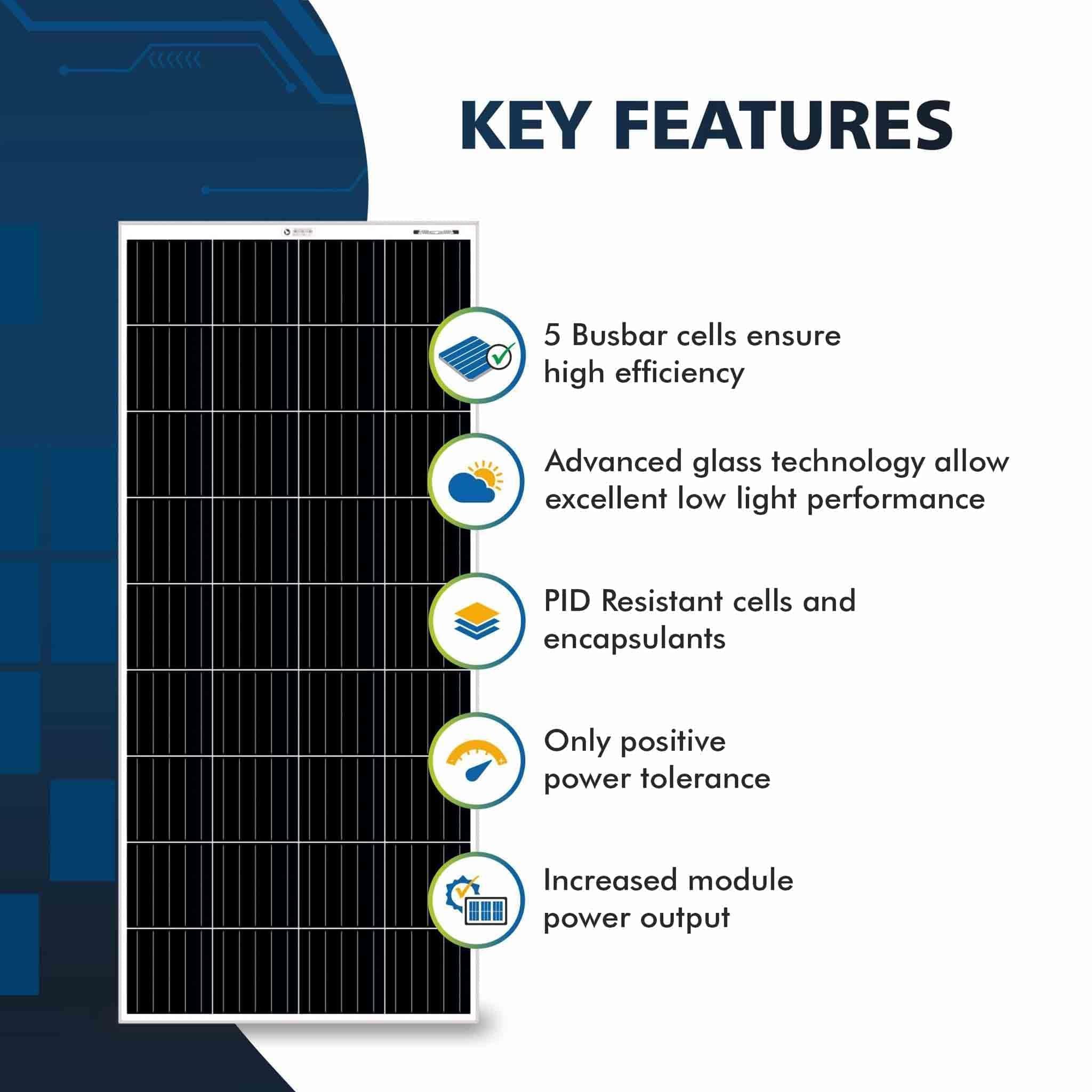

ABOUT THIS SOLAR PANEL
  • Advanced Mono PERC technology .
  • Built with high efficiency A grade 5BB solar cells.
  • AR-coated glass for better sunlight absorption.
  • Silver anodized aluminium frame with mounting holes for fast & easy installation.
  • Excellent power output in low light & cloudy sky conditions.
  • Double EL tested for hot spots & microcrack free solar modules.
  • Water & Dust Proof IP68 rated Junction box with 4mm cable and 2 MC4 connectors.
  • Best compatible with 12V inverter & 12V battery setup.
  • BIS certified, ALMM listed & complies with all IEC standards.
  • Value For Money. Lower installation cost & higher ROI.

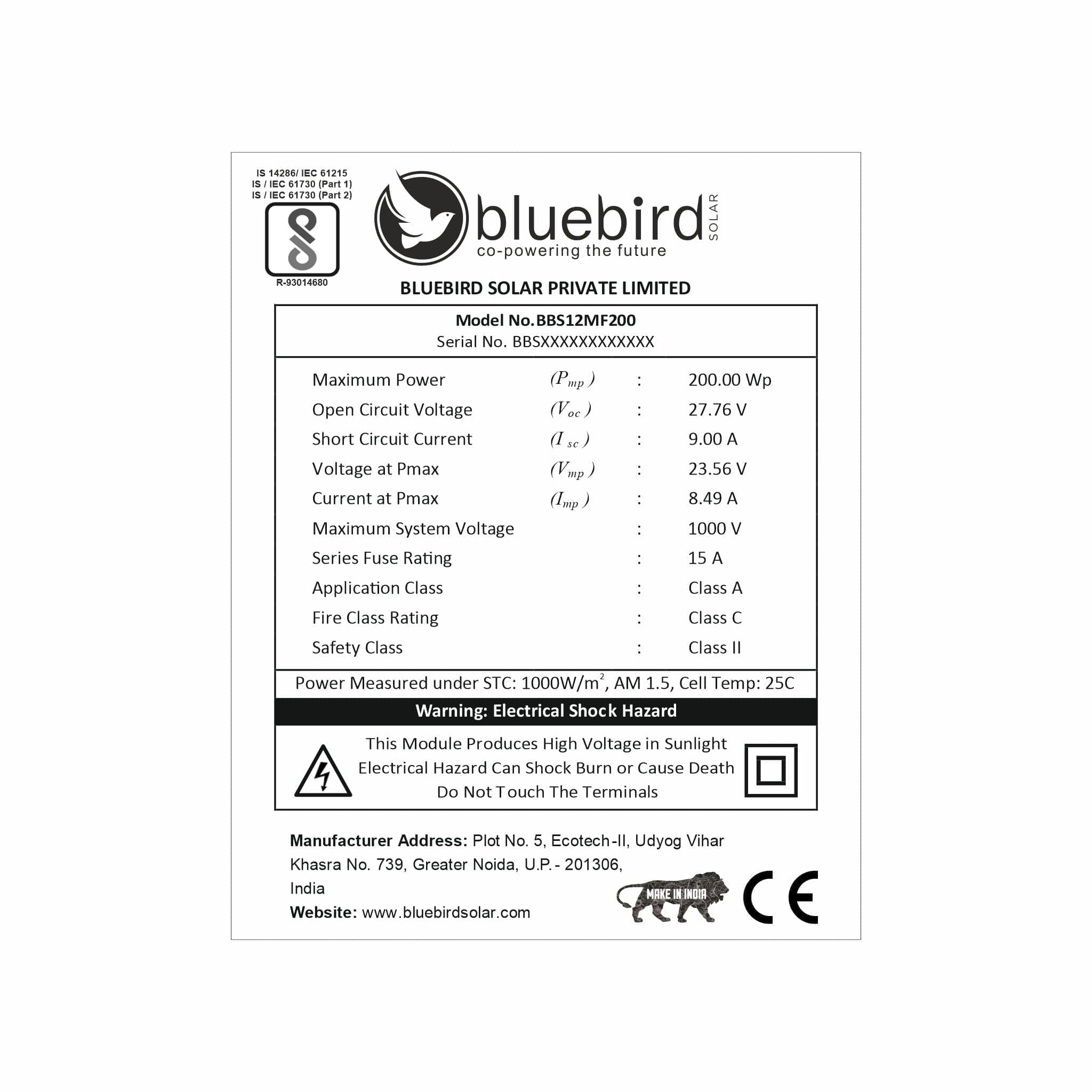

Electrical Characteristics At STC
Maximum Power Pmax (Wp) 200
Maximum Voltage Vmpp (V) 23.56
Maximum Current Impp (A) 8.49
Open Circuit Voltage Voc (V) 27.76
Short Circuit Current Isc (A) 9.00
Module Efficiency(%) 18.70
Product Specifications
Model Number BBS12MF200
Cells 36-5BB Cut Cells
Nominal Voltage 12 Volts
Product Weight 11.5 Kgs
Net Quantity 1 Piece
Product Dimensions 149 cm x 66.5 cm x 3 cm
Manufacturer Warranty 10 Years
Performance Warranty 25 Years
Package Components 1 Solar Panel, Junction Box, Cables & MC4 Connectors
APPLICATIONS
  • Small rooftop solar power systems
  • Portable use like camping
  • Powering campers and caravans
  • Laptop & mobile charging etc.
  • Charging Batteries

Share

Customer Reviews

Based on 22 reviews
73%
(16)
27%
(6)
0%
(0)
0%
(0)
0%
(0)
S
Satya Prakash Yadav
Classy Product 😍🥰🥰

I bought 2 units of 190watt 12volt Mono perc panel. I can confidently say that this the best product for Home/Small Business .

Performance:

After 40days usage I'm writing this review.

It can fully charged my 200AH Exide BATTERY IT750 model in a single day by Using Parallel of 2 units of 190watts without using my battery load.

Voltage test result. 23 Volt to 24.5 volt during 9AM TO 5PM IN Sunny day of each panel.

Current test result. From 8am it's current generation starts over 5 Amp in parallel and after 9am it can produce above 11amp and after 10 am it can generate above 14amp. Upto 3pm it generates above 11 amp. All the test taken after connecting the cable on my SUKAM Brainy Eco 1100 Solar inverter having 30amp 25volte max PWM Charge controller inbuilt..(5years old version inverter)

All above ampere test taken on Standard Clamp meter of MICO Brand. I mean to say that clamp meter used of best quality for better result.

When I used only solar power to use my load along with charging performance is good . Full day used without main load and up to 9pm I used my home 2 fans, 1 tv 24 inch, 6Led Bulbs and 1 desktop computer with 20inch display

When I used my solar for only charging my battery 200ah and used my battery load from 5pm to upto morning. It did not fully discharged. So the second way is better than the 1st way. This is saving my power bill upto 70percent.

Great product.....

j
johnson
Colour variation but I like it.

Color variations at the centre of the product. Will this affect the functioning of the product. Still working every good.

J
J.K.
Awesome

This 3rd solar panels from Blue Bird, Im using since 1 year and found this brand product is very good and less price. Im very very happy.

S
S...
Classy product

"I bought 2 units of 190watt 12volt Mono perc panel. I can confidently say that this the best product for Home/Small Business .

Performance:
After 40days usage I'm writing this review.
It can fully charged my 200AH Exide BATTERY IT750 model in a single day by Using Parallel of 2 units of 190watts without using my battery load.
Voltage test result. 23 Volt to 24.5 volt during 9AM TO 5PM IN Sunny day of each panel.
Current test result. From 8am it's current generation starts over 5 Amp in parallel and after 9am it can produce above 11amp and after 10 am it can generate above 14amp. Upto 3pm it generates above 11 amp. All the test taken after connecting the cable on my SUKAM Brainy Eco 1100 Solar inverter having 30amp 25volte max PWM Charge controller inbuilt..(5years old version inverter)
All above ampere test taken on Standard Clamp meter of MICO Brand. I mean to say that clamp meter used of best quality for better result.
When I used only solar power to use my load along with charging performance is good . Full day used without main load and up to 9pm I used my home 2 fans, 1 tv 24 inch, 6Led Bulbs and 1 desktop computer with 20inch display
When I used my solar for only charging my battery 200ah and used my battery load from 5pm to upto morning. It did not fully discharged. So the second way is better than the 1st way. This is saving my power bill upto 70percent.

Great product....."

M
Mammadu
Very good working&low price

Its low price& working very good

QUESTIONS & ANSWERS

Ask a Question
  • இரண் பேனல்கள் வாங்கினால் ஆப்பர் கடைக்குமா

    2 Panels will cost 7750 each. 2 பேனல்கள் ஒவ்வொன்றும் 7750 செலவாகும்

  • VOC is about 24v of these panel but says its 12v panel,why is it so?

    VOC is open circuit voltage of the panels. The actual voltage (VMP) of the panels is approx. 20.30V. As the voltage always travels from higher to lower side, a 20.30V panel can charge 12V battery devices. So to keep it simple or in layman's terms for easier understanding, it is referred to as a 12V panel.

Frequently Asked Questions

Does a solar panel work on cloudy days?

Yes, solar panels work on cloudy days but generate less power due to low light availability. You can connect batteries with your solar power system to get power during cloudy days. It will offer you power at night.

Can I run the air conditioner on this solar panel?

Yes, your air conditioner can run on this solar panel. Solar panels can provide enough power to run an AC unit, but only if you get a system that’s big enough to generate that amount of electricity. For a single1.5-ton AC, you may need a minimum of 3kW of solar panels i.e 16 panels of 200W.

How many LED lights & fans can be run on a single 200W solar panel?

With bluebird 200W Mono PERC solar panel you can easily run 1 ceiling fans and 2 LED bulbs of 10W Each and Laptop & mobile charging.

How many panels will be needed to charge a 200 Ah battery?

Assuming your battery is 80% discharged and you are not using the grid power, in this case, to fully charge it to 100% with solar power, you would need 200W x 2 solar panels. If you have grid support, two panels could also be sufficient.

Can Bluebird 200W Mono PERC solar panel be converted to AC solar panel?

Yes, Bluebird 200W Mono PERC Solar Panel can be converted to AC solar panel/module by connecting a microinverter to this solar panel. This way your solar panel will generate AC power instead of DC power.

How long does it take to fully charge the 150ah battery?

Yes, It can be used for charging EV cars but the number of Bluebird 200W solar panels required will depend upon your car battery and electrical requirements.

Which inverter battery should I use with this solar panel?

We suggest using a 12V inverter with a 12V battery with this solar panel. It is compatible with all inverter and battery brands.

Why are my solar panels not generating power or giving zero power output?

Solar panels are manufactured with strict QC to ensure they perform well for a minimum of 25 years. So, if you find your panels are not generating power, it's more likely that the defect is in some other appliance like an inverter, charge controller, wiring, or batteries. Zero power output might be due to a faulty inverter or charge controller. It’s also possible that one solar panel in your solar photovoltaic array might have failed. One defective PV module can shut down the whole system when connected in series.

Why are my solar panels showing volts but no current/amperes?

No current/ampere doesn't mean the solar panel is faulty. You will not get any current if your batteries are fully charged, and there’s no place for it to go. The current flow stops through the solar panel at Voc = Voltage Open Circuit. No current can flow in an Open Circuit. You are at an open circuit if your batteries are charged. Wait until the sun shines bright at noontime. Turn everything on, and this might solve your problem.
