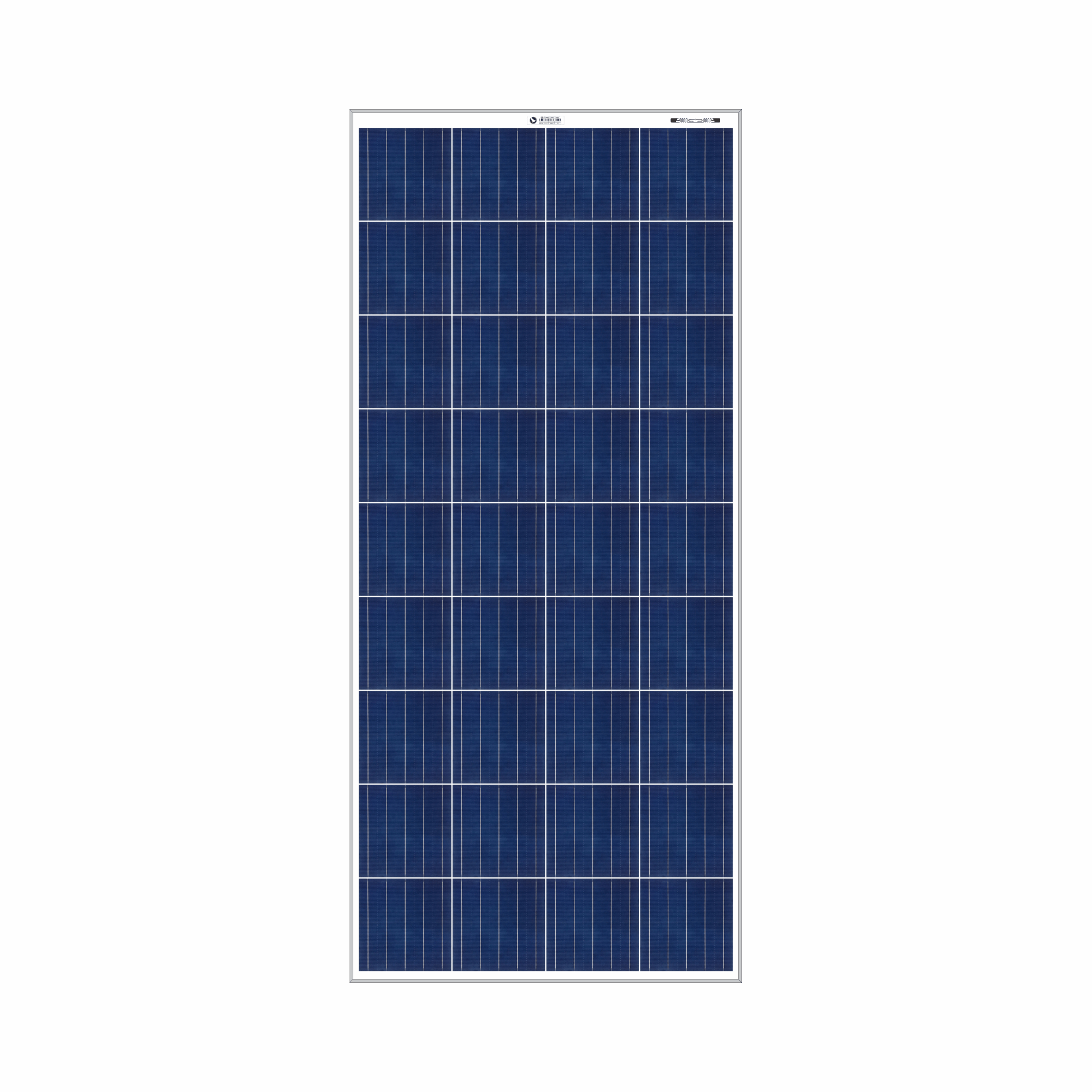

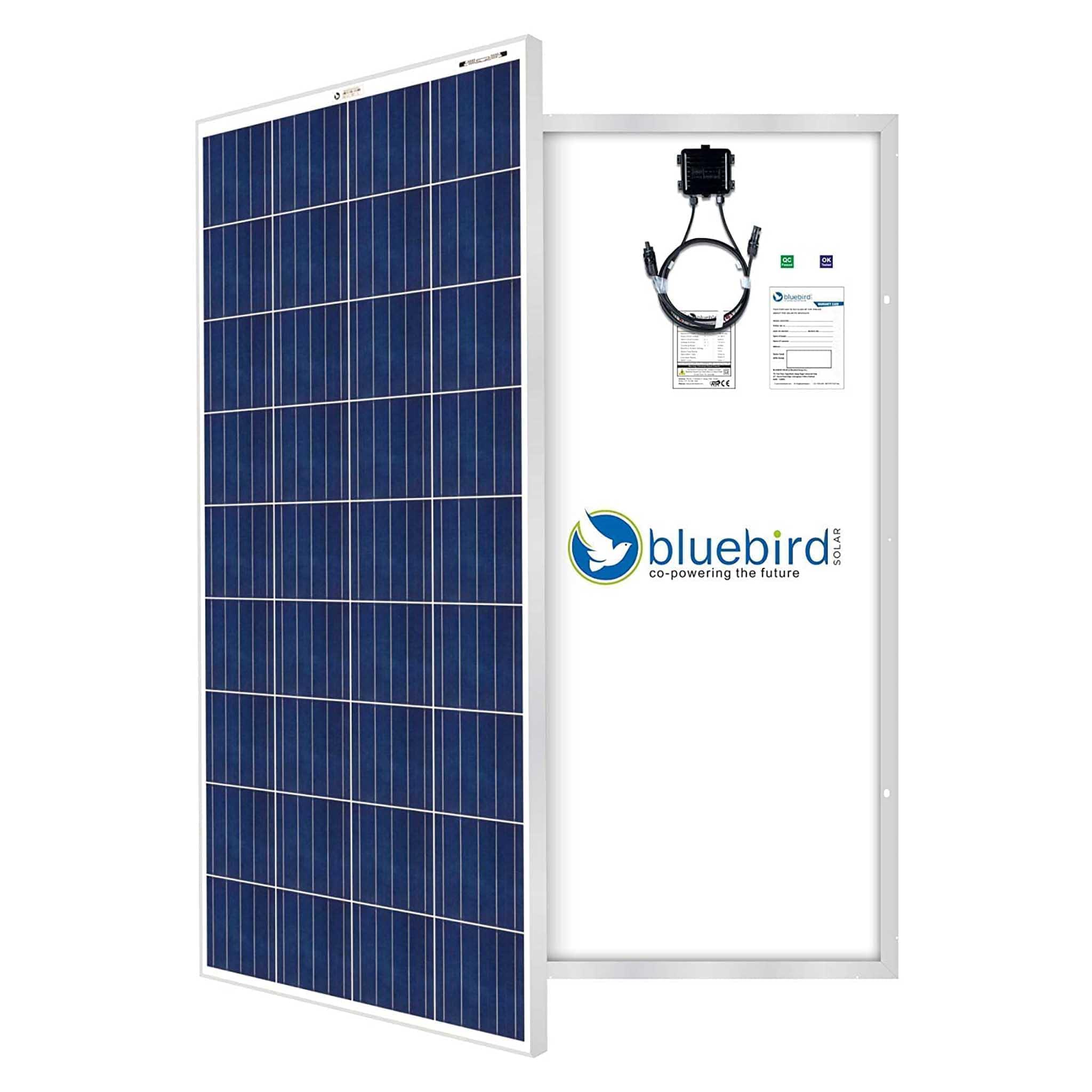

Bluebird 165 Watt 12 Volt Polycrystalline Solar Panel
Bluebird 165 Watt 12 Volt Polycrystalline Solar Panel
BBS12F165
25-years warranty
Free Shipping
10 Days Returnable
Express Delivery
- Cost efficient Polycrystalline technology.
-
Built with high efficiency A grade 5BB solar cells.
- AR-coated glass for better sunlight absorption.
- Silver anodized aluminium frame with mounting holes for fast & easy installation.
- Excellent power output in low light & cloudy sky conditions.
-
Double EL tested for hot spots & microcrack free solar modules.
- Water & Dust Proof IP68 rated Junction box with 4mm cable and 2 MC4 connectors.
- Best compatible with 24V inverter & 24V battery setup.
- BIS certified, ALMM listed & complies with all IEC standards.
- Value For Money. Lower installation cost & higher ROI.
| Maximum Power Pmax (Wp) | 165 |
|---|---|
| Maximum Voltage Vmpp (V) | 18.18 |
| Maximum Current Impp (A) | 9.08 |
| Open Circuit Voltage Voc (V) | 9.62 |
| Short Circuit Current Isc (A) | 5.56 |
| Module Efficiency(%) | 15.20 |
| Model Number | BBS12F165 |
|---|---|
| Cells | 36-5BB Full Cells |
| Nominal Voltage | 12 Volts |
| Product Weight | 11.6 Kgs |
| Net Quantity | 1 Piece |
| Product Dimensions | 149 cm x 66.5 cm x 3 cm |
| Manufacturer Warranty | 10 Years |
| Performance Warranty | 25 Years |
| Package Components | 1 Solar Panel, Junction Box, Cables & MC4 Connectors |
- Small rooftop solar power systems
- Portable uses like camping
- Street and garden lighting systems
- Home lighting systems
- Mobile and laptop charging
Share
QUESTIONS & ANSWERS
Ask a Question-
Do i need a Solar Charge Controller with this Panel or 24 Volt Inverted and 24 volt battery is sufficient ? Does Inverter work as a substitute for Charge Controller ?
If inverter has inbuilt charge controller then not required. Otherwise a separate charge controller is required .
-
How many Bluebird 165W solar panels do I need to power my home?
The number of Bluebird 165 watt 12 volt solar panels you need to power your home depends on various factors, such as your energy consumption, location, and the amount of sunlight your panels receive. You may need to consult a solar professional to determine the optimal number of panels for your home.
-
Can I connect multiple 165 watt 12 volt solar panels together?
Yes, a 165 watt solar panel can be connected to any number of similar wattages in a series or parallel configuration to increase the total power output. The number of Bluebird 165 watt 12 Volt solar panels to be connected will depend on your power requirement. This is commonly done in solar installations to meet higher energy demands
-
What appliances can I run on a 165 watt solar panel?
Bluebird 165 watt solar panel can power a wide range of devices, including lights, fans, pumps, and small appliances. It can also be used to charge batteries, which can then be used to power larger devices or to provide backup power during an outage
-
I want to operate 0.5 hp water pump. Tell me how many solar panels required?
Sir, we would recommend 3 Bluebird 165 Watt Polycrystalline Solar Panels or 1 Bluebird 400 Watt Mono PERC Solar Panels to run 0.5 HP Water pump.
-
How many 165 Watt polycrystalline solar panels needed to charge 220ah battery
It depends upon your installation and customization wants. Please contact your installer to figure out the best quantity of Bluebird 165 Watt Polycrystalline Solar Panel depending upon your solar system.
-
Can i connect 165 watt solar panel to my old Car Battery Or I have to buy another battery
Yes sir, you can connect Bluebird 165 Watt Polycrystalline Solar Panel with your vehicle through a charge controller, if you are planning to charge your automotive battery, Dont connect directly.
-
How many fans & lights can i use ?
Sir, On one Bluebird 165 W solar panel you can run 3 Ceiling fans + 4 LED Bulbs of 10W Each
Frequently Asked Questions
Yes, solar panels work on cloudy days but generate less power due to low light availability. You can connect batteries with your solar power system to get power during cloudy days. It will offer you power at night.
You can use it to power your fans and LED lights, charge mobile phone and laptops, solar fencing purpose.
With Bluebird 165W 12V Polycrystalline solar panel you can easily run 1 ceiling fan and 3 LED bulbs of 10W Each and a laptop.
Assuming your battery is 80% discharged and you are not using grid power, So, to fully charge it to 100% with solar power you would need 165W x 2 solar panels.
Yes, Bluebird 165W 12V Polycrystalline solar panel can be converted to AC solar panel / module by connecting a microinverter to this solar panel. This way your solar panel will generate AC power instead of DC power.
10A is sufficient in case you want to use one panel only. For future, in case you plan to buy one more panel, you can buy a 20A Charge controller also. Price difference is very nominal.
It is suggested that you use a 12V inverter with a 12V battery with this solar panel. It is compatible with all inverter and battery brands.
Solar panels are manufactured with strict QC to ensure they perform well for a minimum of 25 years. So, if you find your panels are not generating power, it's more likely that the defect is in some other appliance like an inverter, charge controller, wiring, or batteries. Zero power output might be due to a faulty inverter or charge controller. It’s also possible that one solar panel in your solar photovoltaic array might have failed. One defective PV module can shut down the whole system when connected in series.
No current/ampere doesn't mean the solar panel is faulty. You will not get any current if your batteries are fully charged, and there’s no place for it to go. The current flow stops through the solar panel at Voc = Voltage Open Circuit. No current can flow in an Open Circuit. You are at an open circuit if your batteries are charged. Wait until the sun shines bright at noontime. Turn everything on, and this might solve your problem.
