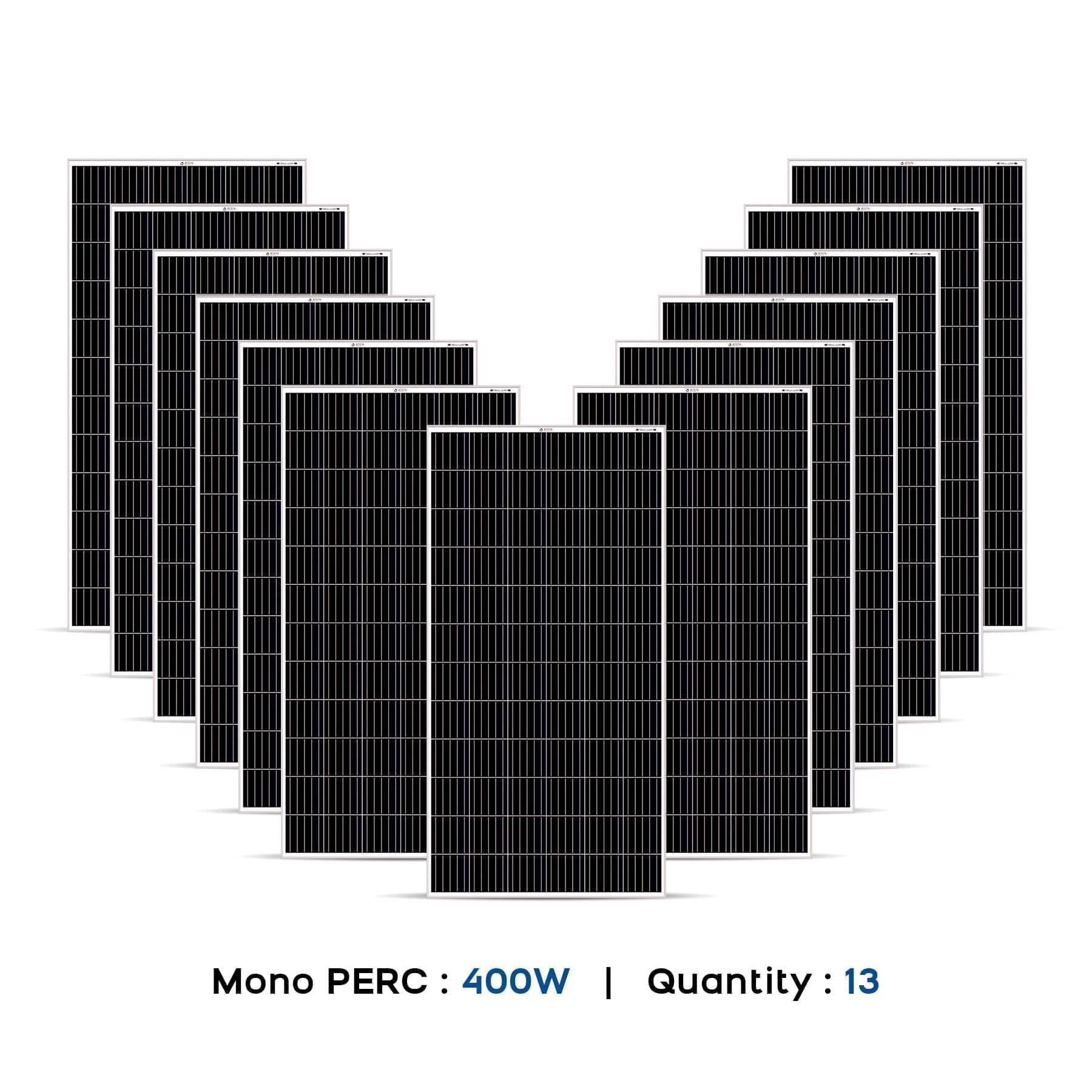

Bluebird 5kW Solar Panels
Bluebird 5kW Solar Panels
BBS24C600Q9
30-years warranty
Free Shipping
10 Days Returnable
Express Delivery
Bluebird 5kW solar panel system is a suitable choice for homes, offices, shops, and commercial spaces with higher electricity consumption. Bluebird Solar offers 5kW solar system configurations with 600Wp and 630Wp N-Type TOPCon bifacial solar panels, designed for high energy generation and long-term performance.
Bluebird Solar’s 600Wp and 630Wp panels offer high efficiency and are backed by a 30-year performance warranty and 12-year product warranty.
| 5kW Configuration | Panel Quantity | Price |
|---|---|---|
| 600Wp TOPCon | 9 Panels | ₹2,02,500 |
| 630Wp TOPCon | 9 Panels | ₹2,25,000 |
| Model Number | BBS24C600 | BBS132C630B |
|---|---|---|
| Maximum Power Pmax (Wp) | 600 | 630 |
| Maximum Voltage Vmpp (V) | 45.74 | 38.52 |
| Maximum Current Impp (A) | 13.13 | 8.70 |
| Open Circuit Voltage Voc (V) | 54.42 | 46.08 |
| Short Circuit Current Isc (A) | 13.76 | 9.57 |
| Module Efficiency (%) | 23.25 | 17.20 |
| Model Number | BBS24C600 | BBS132C630B |
|---|---|---|
| Panel Type | N-Type TOPCon | N-Type TOPCon |
| Technology | Glass-to-Glass Bifacial | Glass-to-Glass Bifacial |
| Nominal Voltage | 24V | 24V |
| Cells | 144 16BB M10R Cells | 132 16BB G12R Cells |
| No. Of Panels | 9 | 9 |
| Module Efficiency | Max. 23.25% | Max. 23.32% |
| Bifaciality Factor | 80 ± 10% | 80 ± 10% |
| Product Weight | 32 kg ± 2% | 33.5 kg ± 2% |

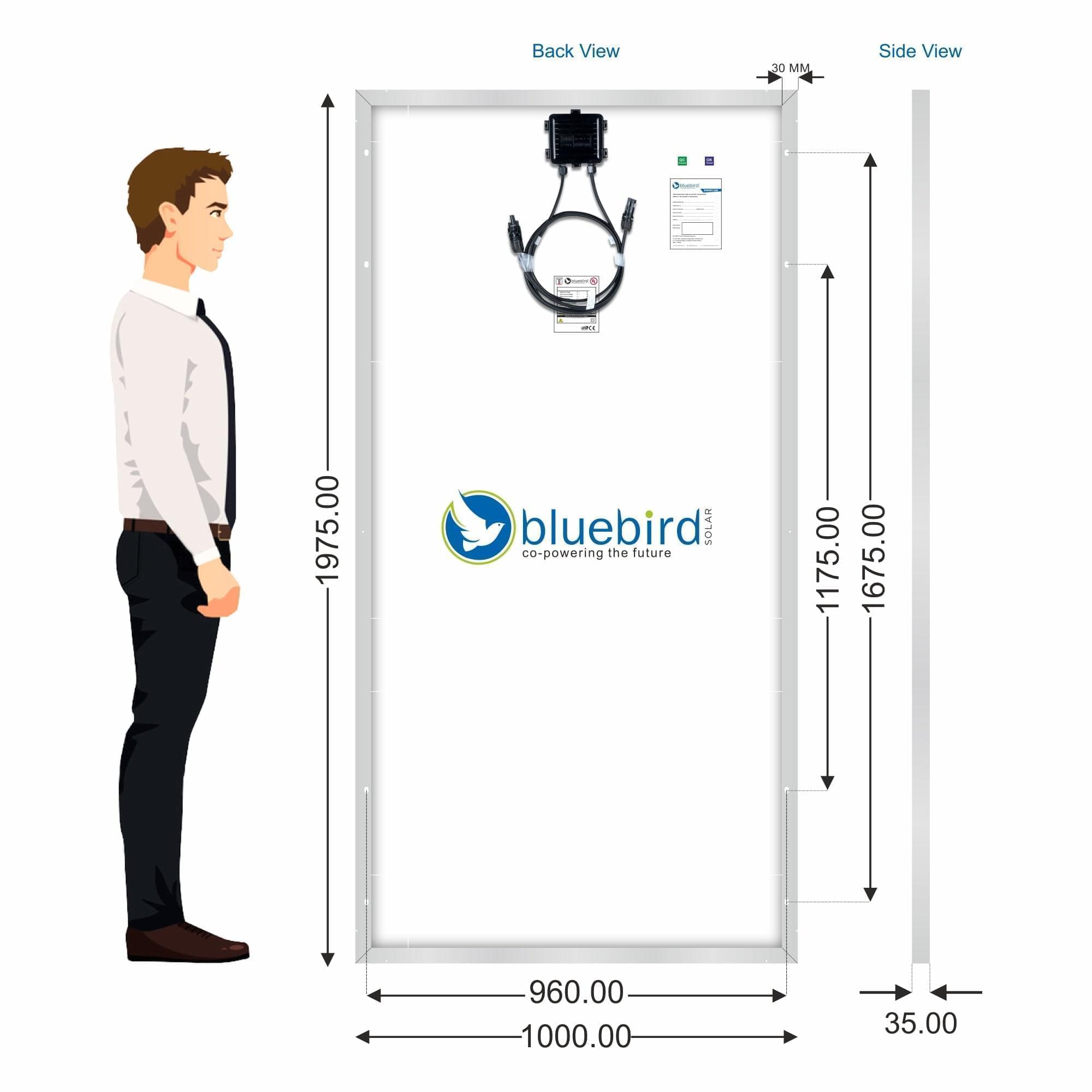

| Product Dimensions | 227.8 × 113.3 × 3.0 cm | 238.2 × 113.4 × 3.0 cm |
| Manufacturers Warranty | 12 Years | 12 Years |
| Performance Warranty | 30 Years | 30 Years |
| Package Components | Solar panels with IP68 rated junction box, cables & MC4 connectors | |

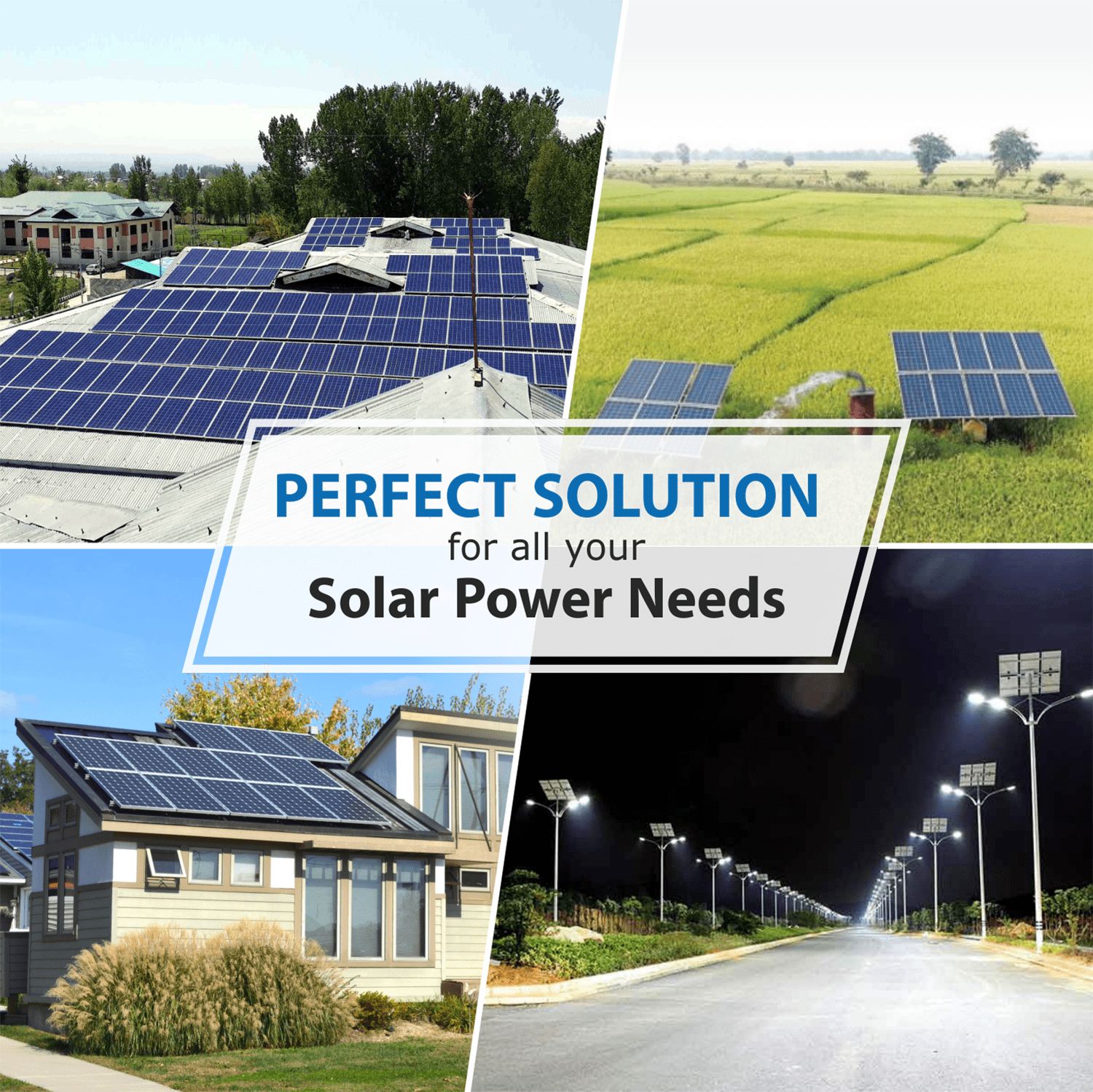

- On-Grid & Off-grid rooftop solar power systems
- Solar water pumping systems
- Large Scale solar projects
- Filling stations & EV charging stations
Share
QUESTIONS & ANSWERS
Ask a Question-
Great choice for those switching to solar in India.
Absolutely! Switching to solar is one of the smartest investments for a sustainable future.
-
How much would be weight of whole panel system. Can i install then over a tin shed ?
A 5kW Bluebird solar panel package with 9 × 600Wp panels weighs approximately 288 kg, while the 9 × 630Wp option weighs approximately 302 kg, excluding the mounting structure and other components. These panels can be installed on a tin shed if the shed's supporting structure is strong enough to safely handle the additional load and wind forces. A professional installer should inspect the shed structure before installation.
-
Are these panels DCR? Are these eligible for the central govt subsidy?
The 5kW solar panel package is available with high-wattage N-Type TOPCon modules. For a rooftop installation under PM Surya Ghar Muft Bijli Yojana, the selected modules must meet the applicable DCR and ALMM requirements. Customers should confirm the DCR variant and current eligibility with Bluebird Solar before placing an order.
Frequently Asked Questions
Q. What is a 5kW solar panel system?
5kW solar panel system is a rooftop solar setup designed around a total installed capacity of approximately 5 kW. The number of panels depends on the wattage of the selected solar modules.
Q. What is the 5kW solar panel price in India in 2026?
A complete 5kW solar system generally costs around ₹2,02,500 to ₹3,50,000 before subsidies in 2026.
Q. How much subsidy is available on a 5kW solar system under PM Surya Ghar Muft Bijli Yojana?
Eligible residential consumers can receive a maximum central government subsidy of ₹78,000 for a 5kW rooftop solar system under the PM Surya Ghar Muft Bijli Yojana.
Q. What is the generation breakdown of a 5kW TOPCon bifacial solar panel
Generation Breakdown
- Daily Generation: 22 to 25 units (kWh) per day
- Monthly Generation: 660 to 750 units (kWh) per month
- Annual Generation: 7,900 to 9,000 units (kWh) per year
