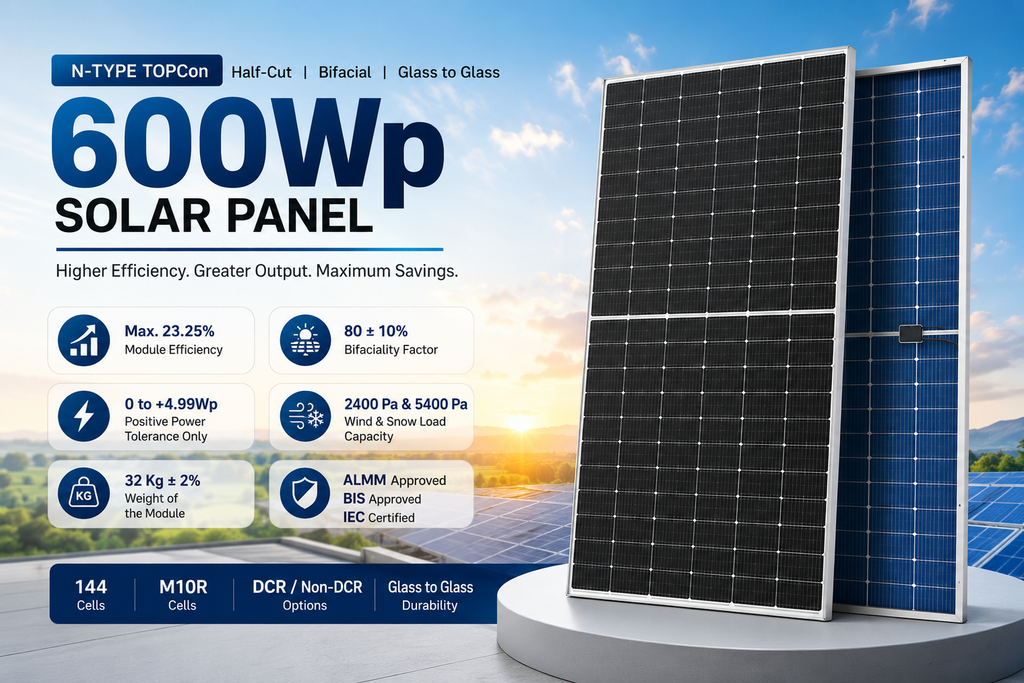

600Wp Solar Panel N-Type TOPCon Bifacial (G2G)

Solar panels are becoming more powerful and efficient as solar technology continues to improve. The 600Wp Solar Panel is a high-wattage module designed to deliver higher power output from each individual panel while making better use of available installation space.

The Bluebird 600Wp N-Type TOPCon Bifacial Solar Panel combines N-Type TOPCon technology, 144 half-cut cells and glass-to-glass bifacial construction. The module offers a rated power output of 600Wp and maximum module efficiency of 23.25%.

Its bifacial design can also capture reflected sunlight from the rear side of the module, potentially increasing total energy generation when the installation has suitable conditions.

What is a 600Wp Solar Panel?

A 600Wp solar panel is a photovoltaic module with a rated maximum power output of 600 watts-peak (Wp) under Standard Test Conditions (STC).

The term Wp (Watt-peak) indicates the maximum rated power that a solar panel can produce under defined laboratory testing conditions.

The Bluebird 600Wp module is based on N-Type TOPCon technology and uses a half-cut cell configuration with 144 cells. It is designed as a bifacial glass-to-glass module and is available in DCR and Non-DCR configurations.

What is N-Type TOPCon Technology?

TOPCon stands for Tunnel Oxide Passivated Contact. It is a modern solar cell technology developed to improve the efficiency and electrical performance of photovoltaic cells.

The 600Wp module uses N-Type TOPCon cells, providing a high-efficiency cell architecture for modern solar installations.

When combined with a half-cut configuration and bifacial glass-to-glass construction, TOPCon technology can help create a high-power solar module suitable for residential, commercial and utility-scale applications.

How Does a 600Wp Bifacial Solar Panel Work?

A bifacial solar panel can generate electricity from both its front and rear sides.

The front side receives direct sunlight, while the rear side can utilize sunlight reflected from surfaces such as:

• White or reflective rooftops
• Ground surfaces
• Concrete areas
• Sand or other high-albedo surfaces

The amount of additional energy generated from the rear side depends on installation conditions, including mounting height, ground reflectivity, row spacing, tilt angle and shading.

The 600Wp module has a specified 80 ± 10% bifaciality factor.

600Wp Solar Panel Bifacial Power Output

The datasheet provides the following output values at different rear-side power contributions:

Rear-Side Power Contribution	Approx. Output
10%	660Wp
15%	690Wp
20%	720Wp
25%	750Wp
30%	780Wp

These values represent the module's output under the specified rear-side contribution conditions. They should not be considered guaranteed real-world output, because actual bifacial gain depends on the project site and installation design.

At a 30% rear-side contribution, the datasheet shows a module efficiency of 30.19%.

Key Features of the 600Wp Solar Panel

1. 600Wp High Power Output

The module provides a rated maximum power of 600Wp, making it suitable for projects looking for high power generation from each individual module.

Higher-wattage modules can also help reduce the total number of panels required for a particular system capacity.

2. 23.25% Module Efficiency

The 600Wp module offers a maximum module efficiency of 23.25%.

Higher efficiency allows more electrical power to be generated from a given panel surface area, which can be particularly useful where installation space is limited.

3. 144 Half-Cut Cells

The module uses 144 cells in a half-cut configuration.

Half-cut cell technology can help reduce electrical losses within the module and improve its overall performance.

4. N-Type TOPCon Technology

The use of N-Type TOPCon technology provides the module with a modern high-efficiency cell architecture designed for high-power solar applications.

5. Bifacial Glass-to-Glass Construction

The 600Wp module uses glass-to-glass bifacial construction.

This allows the rear side of the module to receive reflected sunlight while providing a durable dual-glass module structure.

6. 80 ± 10% Bifaciality Factor

The specified bifaciality factor is 80 ± 10%, allowing the rear side to contribute to additional power generation under suitable installation conditions.

7. High Wind and Snow Load Capacity

The module is designed with:

• 2400 Pa wind load capacity
• 5400 Pa snow load capacity

The appropriate mounting structure should always be selected according to the project location and engineering requirements.

8. 1500V DC Maximum System Voltage

The module supports a maximum system voltage of 1500V DC, making it suitable for appropriately designed large-scale solar systems.

9. DCR and Non-DCR Availability

The datasheet specifies both DCR and Non-DCR configurations.

For projects requiring domestic-content-compliant modules, the appropriate DCR configuration should be selected according to the applicable rules and project requirements.

600Wp Solar Panel Specifications

Parameter	600Wp
Technology	N-Type TOPCon
Module Type	Half-Cut Bifacial
Number of Cells	144
Cell Configuration	Half-Cut
Maximum Power	600Wp
Module Efficiency	23.25%
Maximum Power Voltage (Vmpp)	45.74V
Maximum Power Current (Impp)	13.13A
Open Circuit Voltage (Voc)	54.42V
Short Circuit Current (Isc)	13.76A
Fill Factor	80.20%
Bifaciality Factor	80 ± 10%
Wind Load	2400 Pa
Snow Load	5400 Pa
Module Weight	32 kg ± 2%
Maximum System Voltage	1500V DC
Maximum Series Fuse	30A
Operating Temperature	-40°C to +85°C
NOCT	45 ± 2°C
Construction	Glass-to-Glass
Availability	DCR & Non-DCR

600Wp Solar Panel Performance at NOCT

Standard Test Conditions are useful for comparing modules, but solar panels operate under different environmental conditions in the field.

According to the datasheet, the 600Wp module provides the following electrical characteristics under NOCT:

Parameter	600Wp
Maximum Power	450.00W
Maximum Power Voltage	41.24V
Maximum Power Current	10.91A
Open Circuit Voltage	50.88V
Short Circuit Current	11.33A

These values represent the module's electrical characteristics under the specified NOCT conditions.

Temperature Coefficients of the 600Wp Module

Temperature has an effect on solar module electrical performance.

The 600Wp module has the following specified temperature coefficients:

• Temperature coefficient of Voc: -0.25%/°C
• Temperature coefficient of Isc: +0.045%/°C
• Temperature coefficient of Power: -0.29%/°C

The specified operating temperature range is -40°C to +85°C, with an NOCT of 45 ± 2°C.

600Wp Solar Panel Warranty

The datasheet specifies:

• 12-year product warranty
• 30-year linear power performance warranty

The performance warranty specifies less than 1% degradation during the initial period, followed by approximately 0.4% annual degradation thereafter, according to the warranty graph and information provided in the datasheet.

A long performance warranty is important for solar projects because solar modules are expected to generate electricity for several decades.

Where Can a 600Wp Solar Panel Be Used?

The 600Wp N-Type TOPCon bifacial solar panel can be considered for several types of solar installations.

Residential Rooftop Solar

High-wattage modules can help reduce the number of panels needed for larger residential rooftop systems, subject to available roof space and system design.

Commercial & Industrial Solar

Commercial and industrial rooftops often require high power generation from limited roof areas. A 600Wp module can help achieve higher installed capacity with fewer modules.

Ground-Mounted Solar Projects

Bifacial modules can be particularly useful in ground-mounted installations where the rear side has access to reflected sunlight.

Utility-Scale Solar Plants

The combination of high power output, bifacial technology and 1500V DC system compatibility makes the module suitable for appropriately engineered utility-scale projects.

How Many 600Wp Solar Panels Are Required?

The number of panels required depends on the desired system capacity.

For example:

1kW system:
1,000 ÷ 600 = 1.67

So, approximately 2 panels would provide 1.2kWp of module capacity.

5kW system:
5,000 ÷ 600 = 8.33

Approximately 9 panels would provide 5.4kWp of module capacity.

10kW system:
10,000 ÷ 600 = 16.67

Approximately 17 panels would provide 10.2kWp of module capacity.

These are simple module-count calculations. Actual system sizing should consider the inverter, DC/AC ratio, roof area, string voltage, project requirements and applicable regulations.

600Wp Solar Panel vs Lower-Wattage Panels

A major advantage of a 600Wp module is the higher power output available from each panel.

For a particular system capacity, using higher-wattage modules can potentially reduce the number of modules required.

This may help reduce:

• Number of mounting points
• Module-to-module connections
• DC cabling requirements
• Installation time
• Space required for the same DC capacity

However, module wattage should not be the only factor when selecting a solar panel. Efficiency, degradation, temperature coefficient, warranty, bifacial performance, mechanical load ratings and overall project design are also important.

Why Choose a 600Wp N-Type TOPCon Bifacial Solar Panel?

The 600Wp module offers a combination of high power output and modern solar technology.

Key advantages include:

• 600Wp rated power
• 23.25% module efficiency
• N-Type TOPCon technology
• 144 half-cut cells
• Bifacial glass-to-glass construction
• 80 ± 10% bifaciality factor
• 2400 Pa wind load
• 5400 Pa snow load
• 1500V DC maximum system voltage
• DCR and Non-DCR configurations
• 12-year product warranty
• 30-year linear performance warranty
• -40°C to +85°C operating temperature range

Conclusion

The 600Wp Solar Panel is designed for solar projects where high power output, efficiency and optimized use of installation space are important.

With 600Wp rated power, 23.25% module efficiency, N-Type TOPCon technology, 144 half-cut cells, bifacial glass-to-glass construction and an 80 ± 10% bifaciality factor, the module combines several features required for modern solar installations.

Its 1500V DC maximum system voltage, 2400 Pa wind load, 5400 Pa snow load and 30-year linear performance warranty further support its use in appropriately designed residential, commercial, industrial and utility-scale solar projects.

For the best results, the module should be selected and installed according to the site's solar irradiation, roof or land conditions, inverter specifications, string design, mounting structure and applicable project requirements.

Frequently Asked Questions

Is a 600Wp solar panel good?

Yes. A 600Wp solar panel is a high-wattage module designed to deliver a high power output from each individual panel. The Bluebird 600Wp module combines N-Type TOPCon technology with bifacial glass-to-glass construction.

What is the efficiency of a 600Wp solar panel?

The maximum module efficiency of the 600Wp module is 23.25%.

How many cells are used in the 600Wp panel?

The module uses 144 half-cut cells.

Is the 600Wp solar panel bifacial?

Yes. It is a bifacial glass-to-glass solar module with an 80 ± 10% bifaciality factor.

Can a 600Wp solar panel produce more than 600W?

The front-side rated power under STC is 600Wp. Because the module is bifacial, the rear side can contribute additional power when suitable reflected light is available. The datasheet shows up to 780Wp at a specified 30% rear-side power contribution. Actual field output will depend on installation conditions.

What is the efficiency of the 600Wp panel with 30% rear-side contribution?

The datasheet shows a module efficiency of 30.19% at a 30% rear-side power contribution.

What is the warranty of a 600Wp solar panel?

The module has a 12-year product warranty and a 30-year linear power performance warranty, according to the datasheet.

Is the 600Wp solar panel available in DCR?

The datasheet specifies DCR and Non-DCR configurations. The correct configuration should be selected according to the project's applicable requirements.
